Visual Editor (web)

The same workflows, visually. Build on the canvas or edit the .bot source directly — both stay in sync.

Iterion includes a browser-based visual workflow editor built with React and XYFlow. Served by your local iterion binary — no installation beyond the CLI.

Iterion studio — visual workflow editor with canvas, node library, and inspector

bash

iterion studio                     # Launch on default port (4891), opens browser
iterion studio --port 8080         # Custom port
iterion studio --dir ./workflows   # Custom working directory
iterion studio --bind 0.0.0.0      # Expose on the LAN (default 127.0.0.1)
iterion studio --bots-path ./bots  # Add a bot discovery path (repeatable; feeds the Launch modal)
iterion studio --no-browser        # Don't auto-open browser
iterion studio --no-browser-pane   # Disable the run console's Browser pane

See cli-reference.md #iterion-studio for the full flag set (networking, attachments, bot discovery).

What you get

Bot builder (/bots/new) — Guided creation of a new bot, from template gallery to first test run (see below)
Canvas — Drag-and-drop node graph with auto-layout, zoom, search, and keyboard shortcuts
Node library — Drag pre-built node types (agent, judge, router, human, tool, compute) onto the canvas
Property editor — Edit node properties, schemas, prompts, and edge conditions in a side panel
Source view — Split-pane view showing the raw workflow source (.bot) alongside the visual graph
Bundle file drawer (cloud team bots) — Add, edit, save, or delete manifest.yaml, skills, prompts, and other bundle files without leaving the editor (main.bot is the required entry and cannot be deleted)
Live diagnostics — Real-time validation errors and warnings as you edit (sparse DSL ranges C001–C199 and async C240–C242; bundle checks C200–C234)
File watching — Detects external file changes via WebSocket and syncs automatically
Undo/redo — Full edit history
Launch modal — Fills vars and attachments at launch time, with bot/argument discovery driven by --bots-path (the modal's bot picker and argument form consume the same catalogue iterion bots list emits)
Kanban /board view — Native tracker CRUD with drag-and-drop (gated on server_info.native_tracker_enabled; see native-tracker.md)
Pipeline /pipelines board — Global control-center board tracking staged tasks and their in-flight runs, with priority-driven launch (same server_info.native_tracker_enabled gate; concurrency capped by --max-concurrent-pipelines; see native-tracker.md)

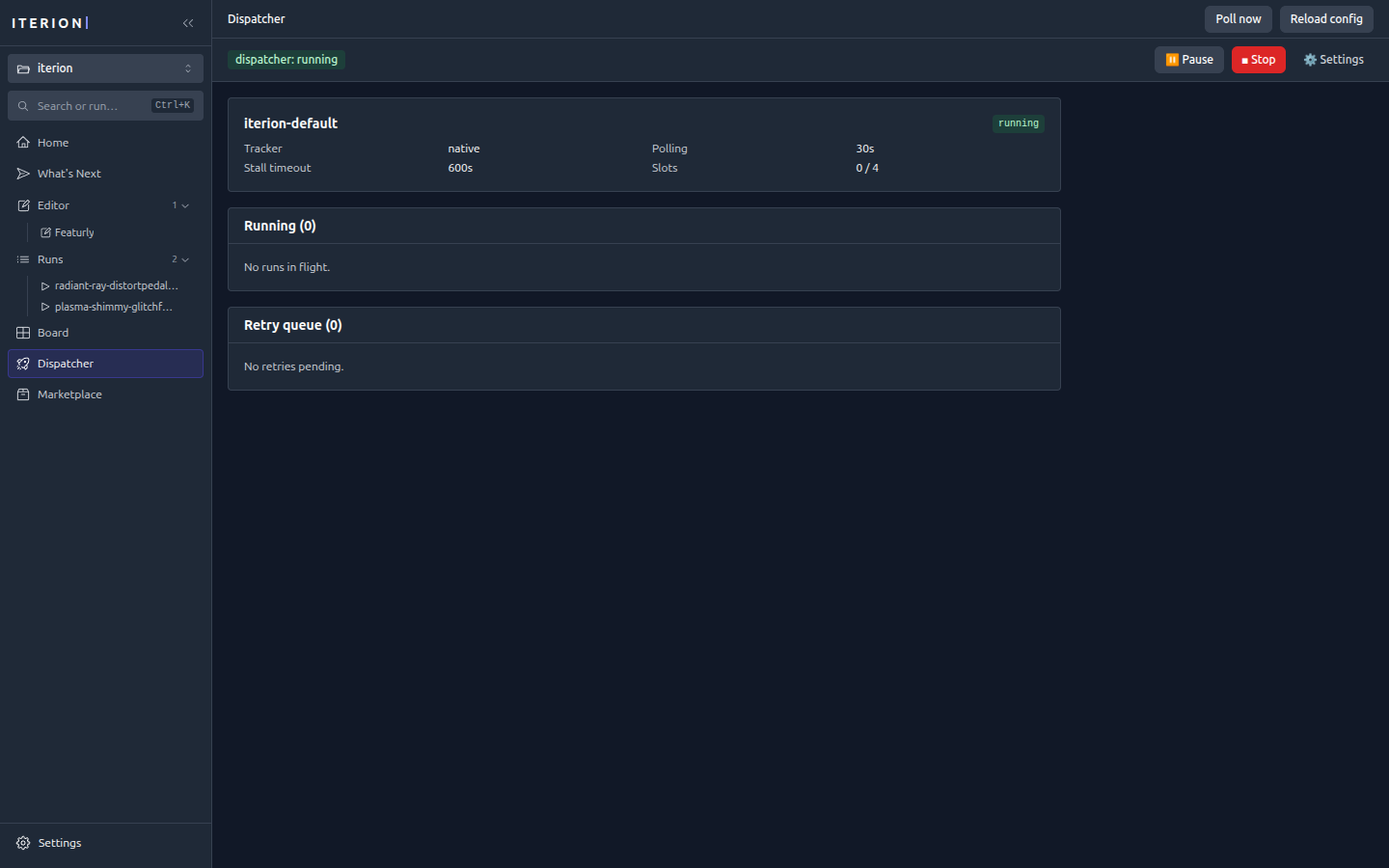

/dispatcher dashboard — Live running + retry tables when iterion dispatch is wired (gated on server_info.dispatcher_enabled; see dispatcher.md)
Browser pane — Preview URLs, live CDP screencast, and time-travel screenshots tied to a run (see browser-pane.md). Disable with --no-browser-pane.
Run console — Launch a workflow from the studio and watch events stream live

This mode is the simplest way to design and iterate locally. If you want a packaged native window instead (no browser, OS-keychain credentials, auto-update), see the Desktop App.

Creating a bot (`/bots/new`)

The New bot button on the Bots view opens the guided builder — the recommended way to start a bot from nothing. It runs in two phases on a single page:

Template gallery — pick a starting point (blank, daily-digest, code-reviewer, docs-writer, issue-triager). Each pre-fills the form; every field stays editable afterwards.
Form → create → test — name the bot, write its mission, set the optional dials (model/backend, worktree, sandbox, permission, budgets, a suggested cron), then create it. An embedded test-run pane lets you iterate without leaving the page. Drafts auto-save to local storage.

In local mode, creating writes a real bundle to <workdir>/bots/<slug>/ — main.bot, manifest.yaml, README.md, and the skills/ prompts/ attachments/ presets/ layout — and refreshes the generated bot catalogue, so the new bot is immediately discoverable, launchable, and dispatchable. The CLI equivalent is iterion bots create <slug> --template <id>.

In cloud mode, the same builder is enabled for a user with the bot-editor capability (or a team admin/owner). The server renders the same pkg/botscaffold spec in a temporary directory and persists the whole file map to the team's bot-source store instead of an ephemeral pod filesystem. The new bot can be opened directly in the multi-file editor and is visible to every team member. Baked catalogue bots remain read-only; Duplicate & edit forks the whole catalogue bundle into that team store before opening it. See Cloud user guide → Editing and creating bots.

Both creation paths validate the spec and generated bundle before persistence; subsequent cloud file saves compile the whole bundle and use a version token to reject conflicting teammate edits. See the CLI reference for local creation and the Cloud REST API for the team store.

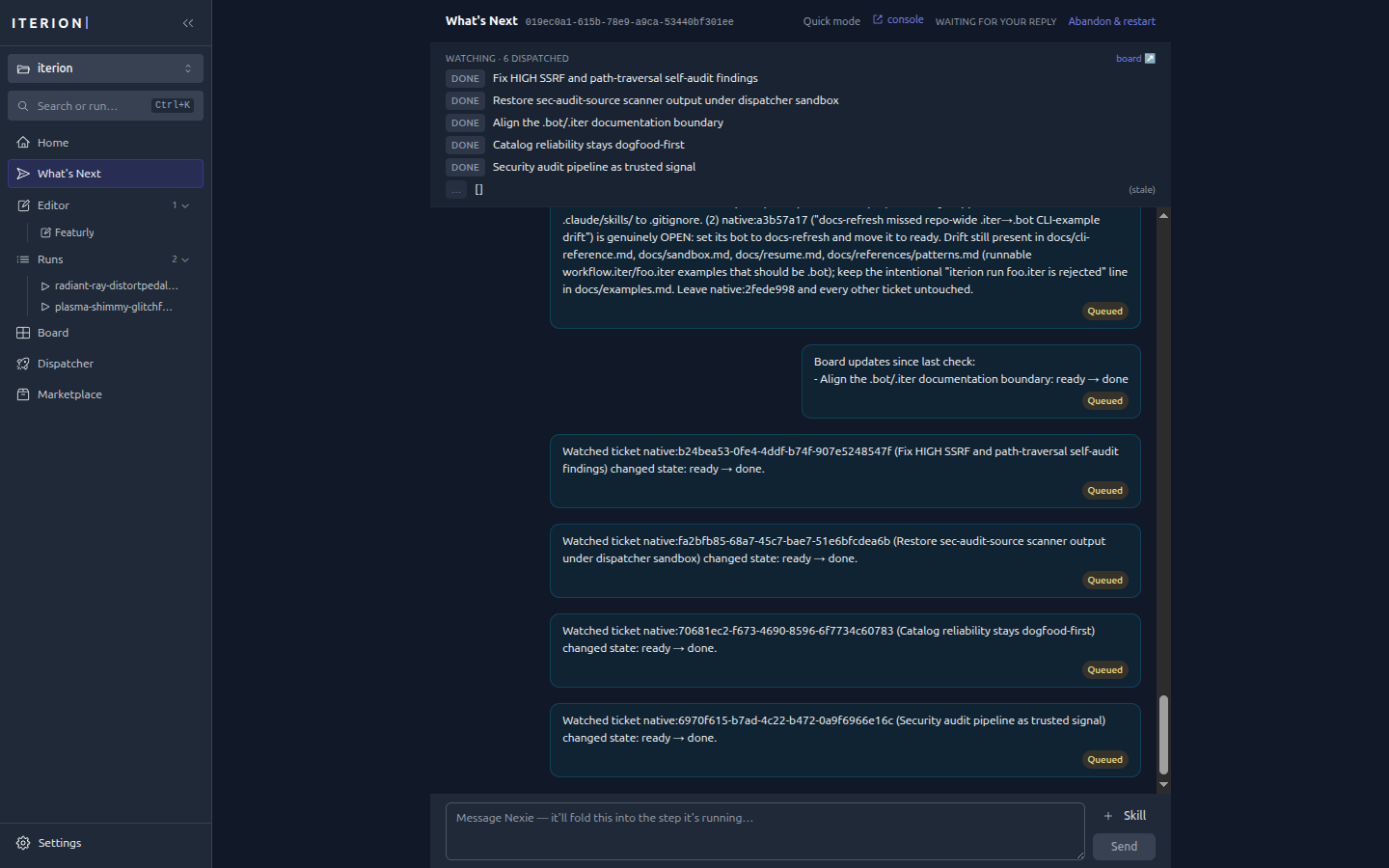

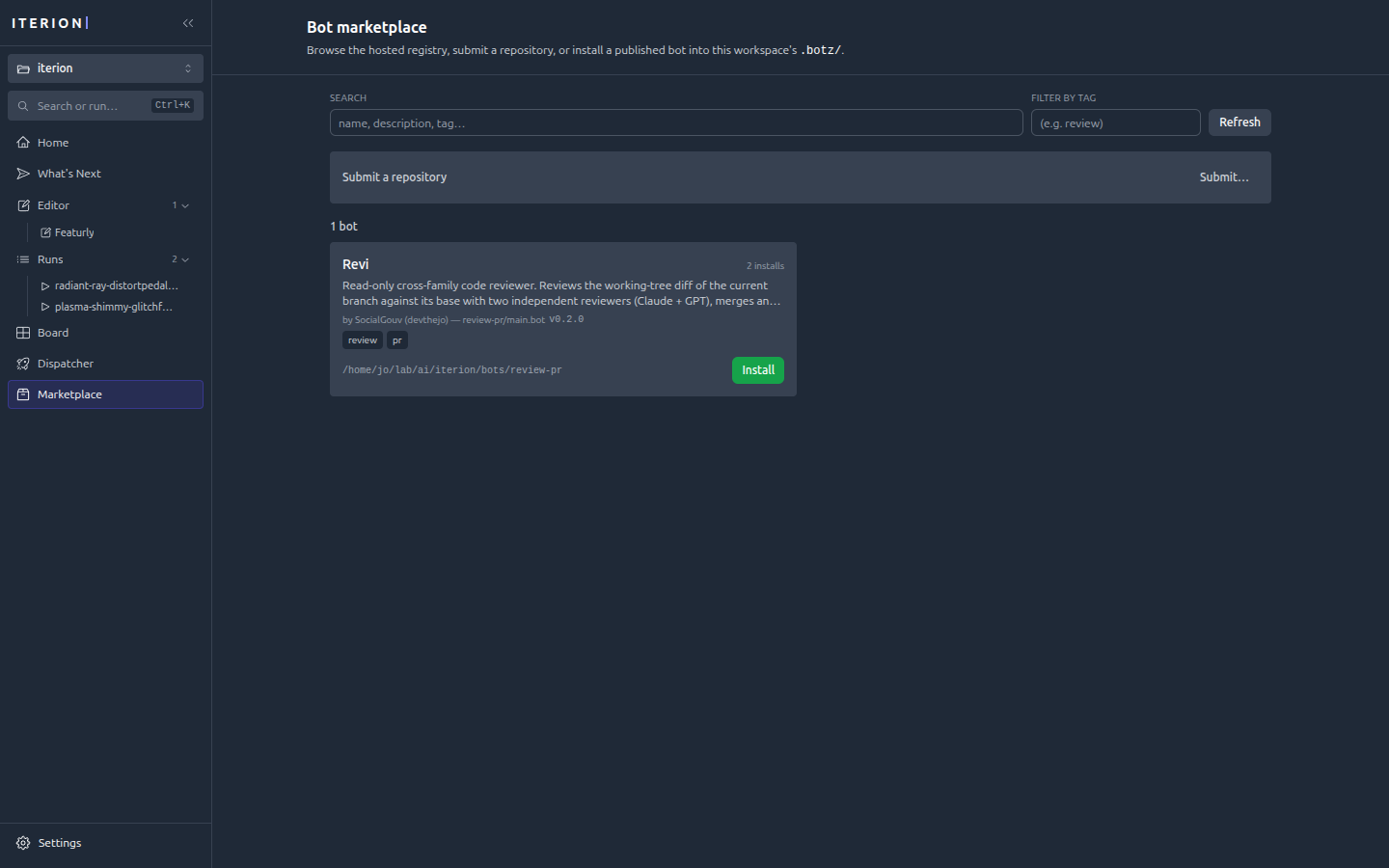

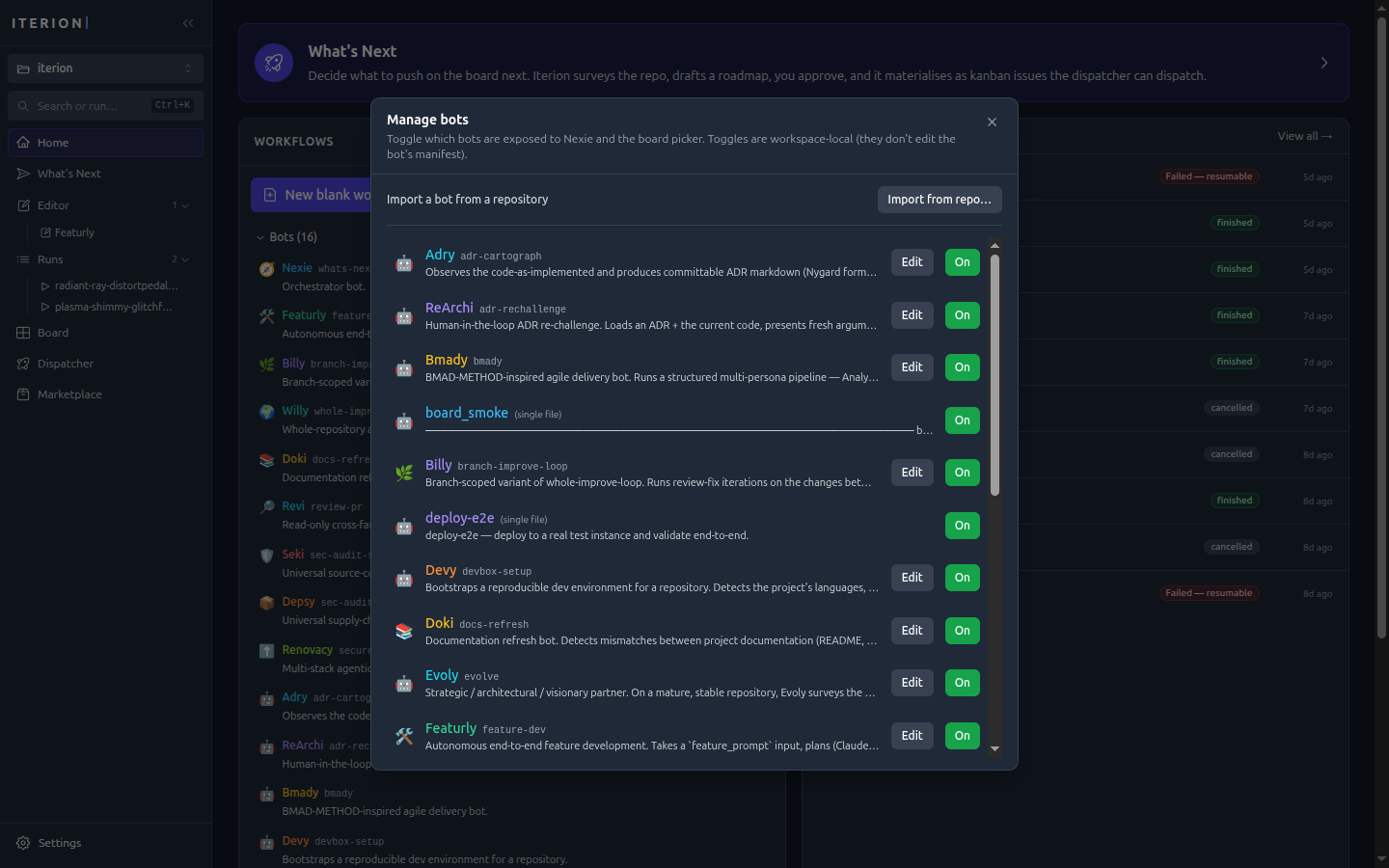

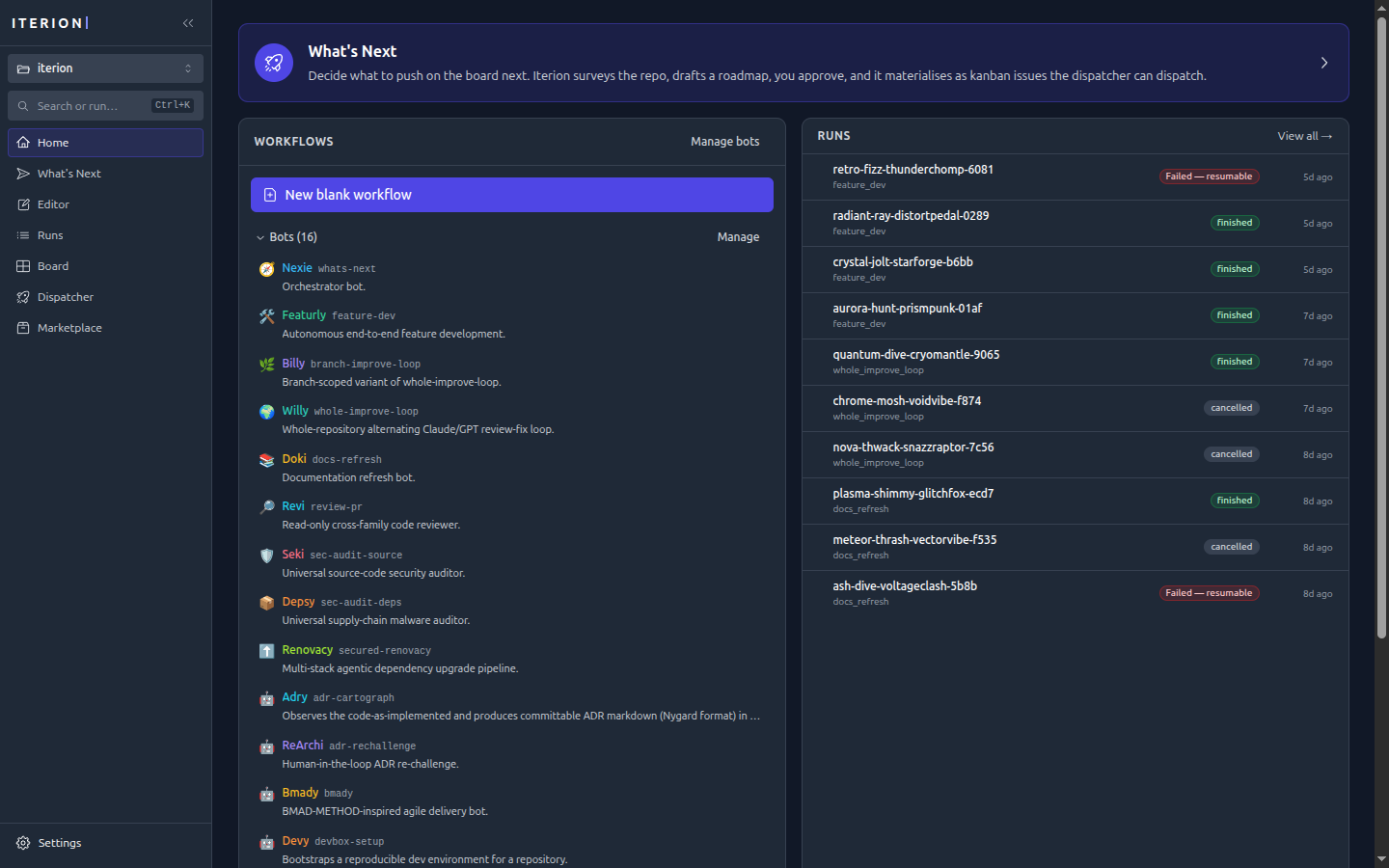

Screenshots

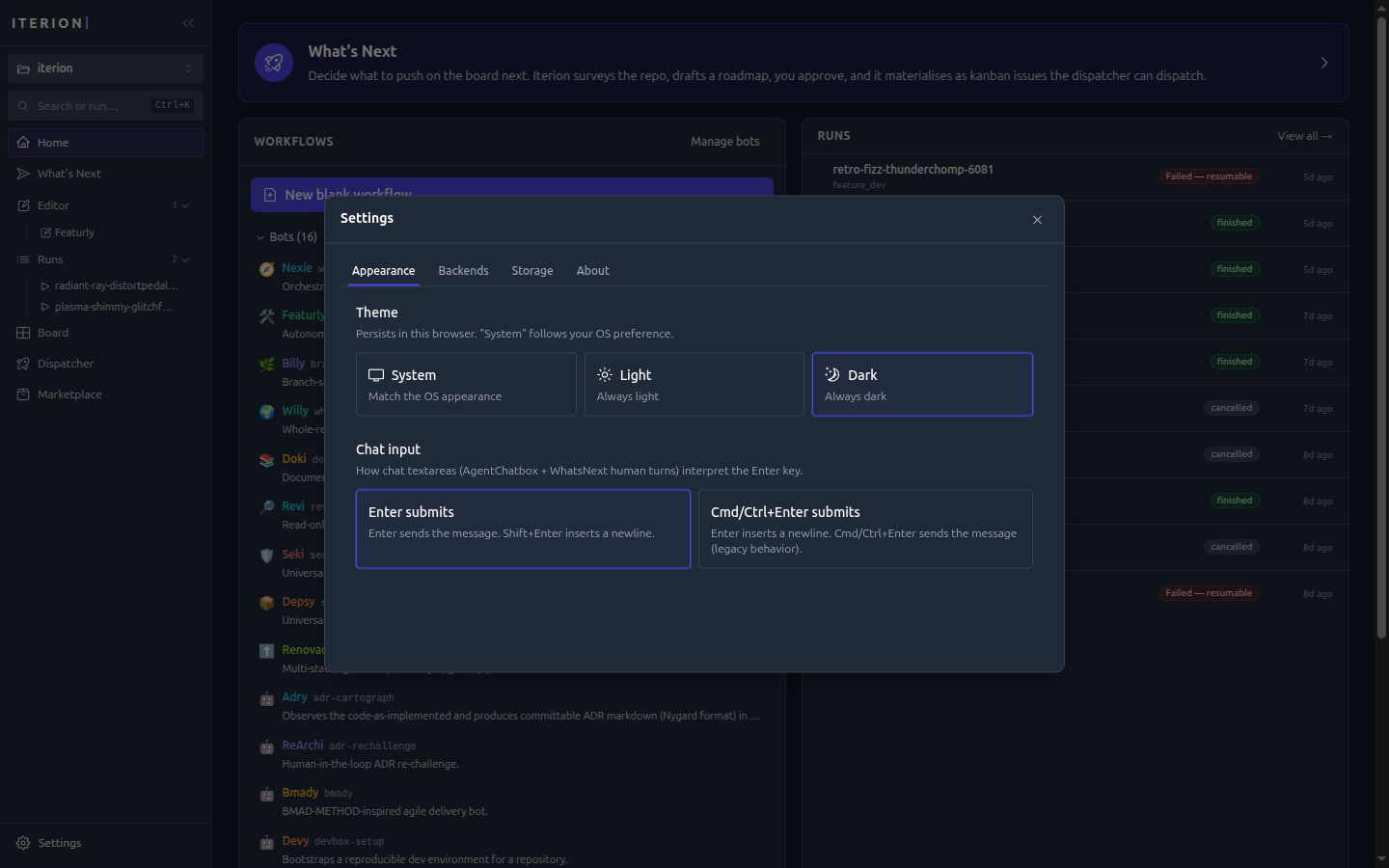

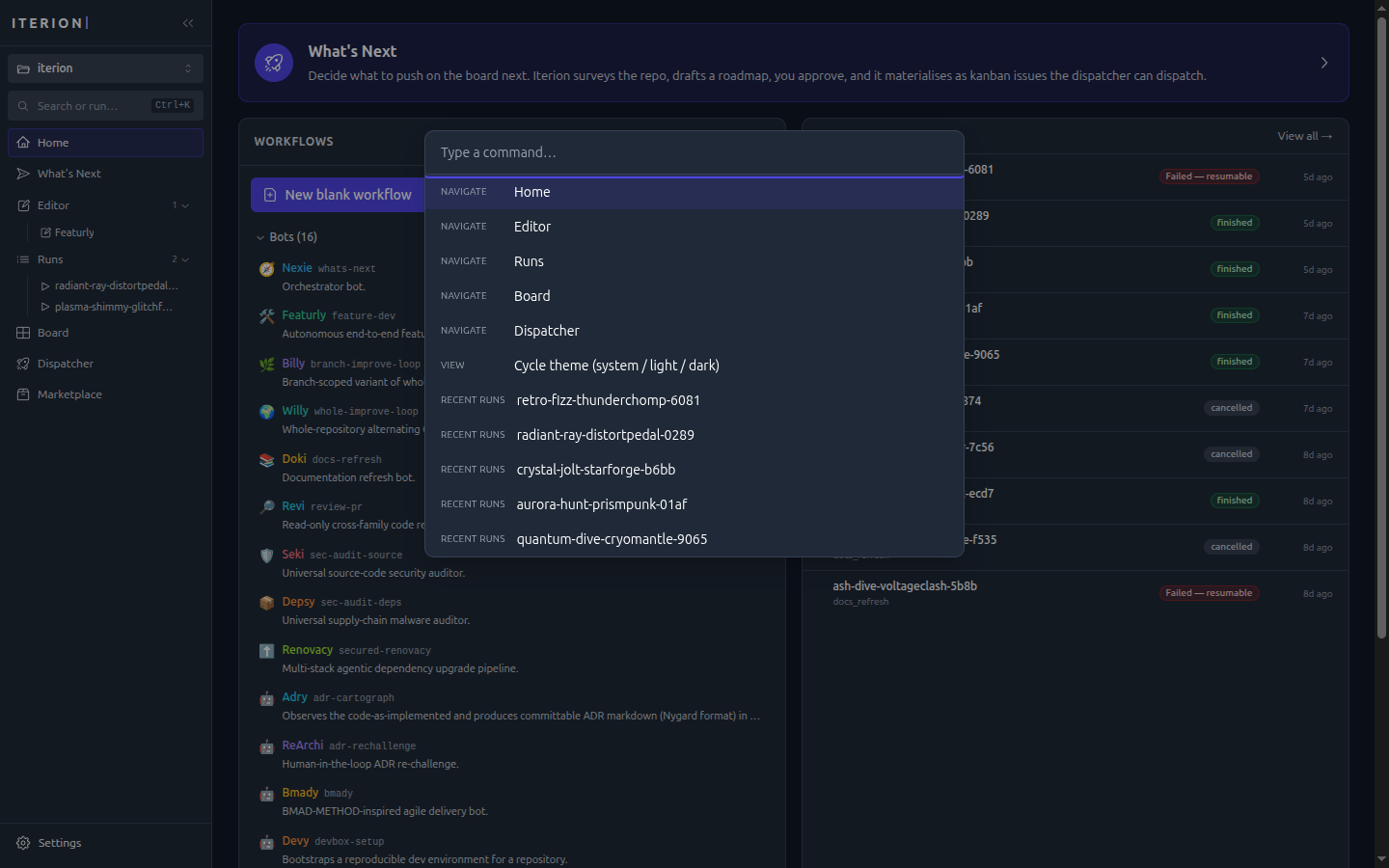

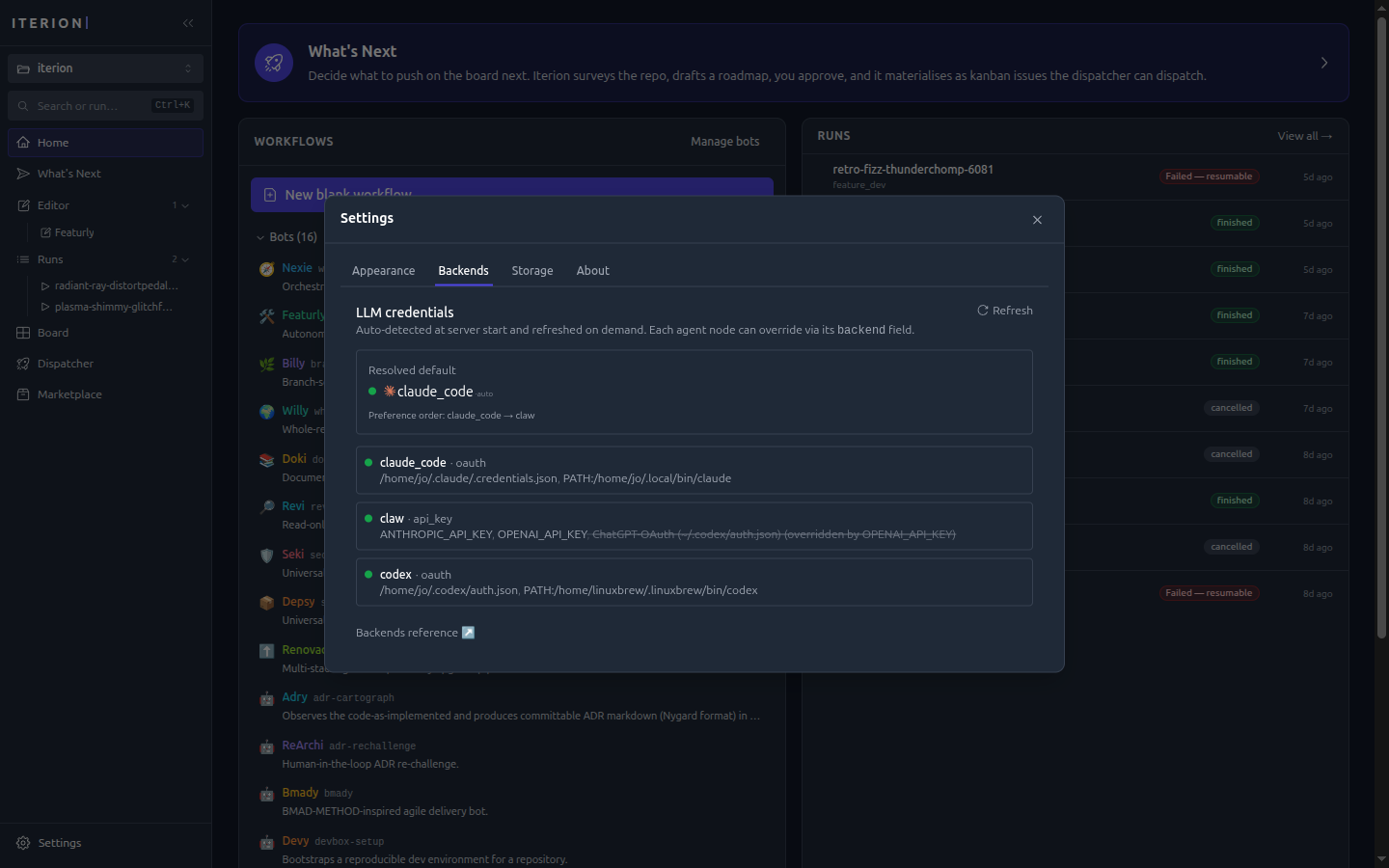

All shots use the studio's dark theme; a light theme is available from Settings → Appearance or ⌘/Ctrl+K → Cycle theme.

Authoring

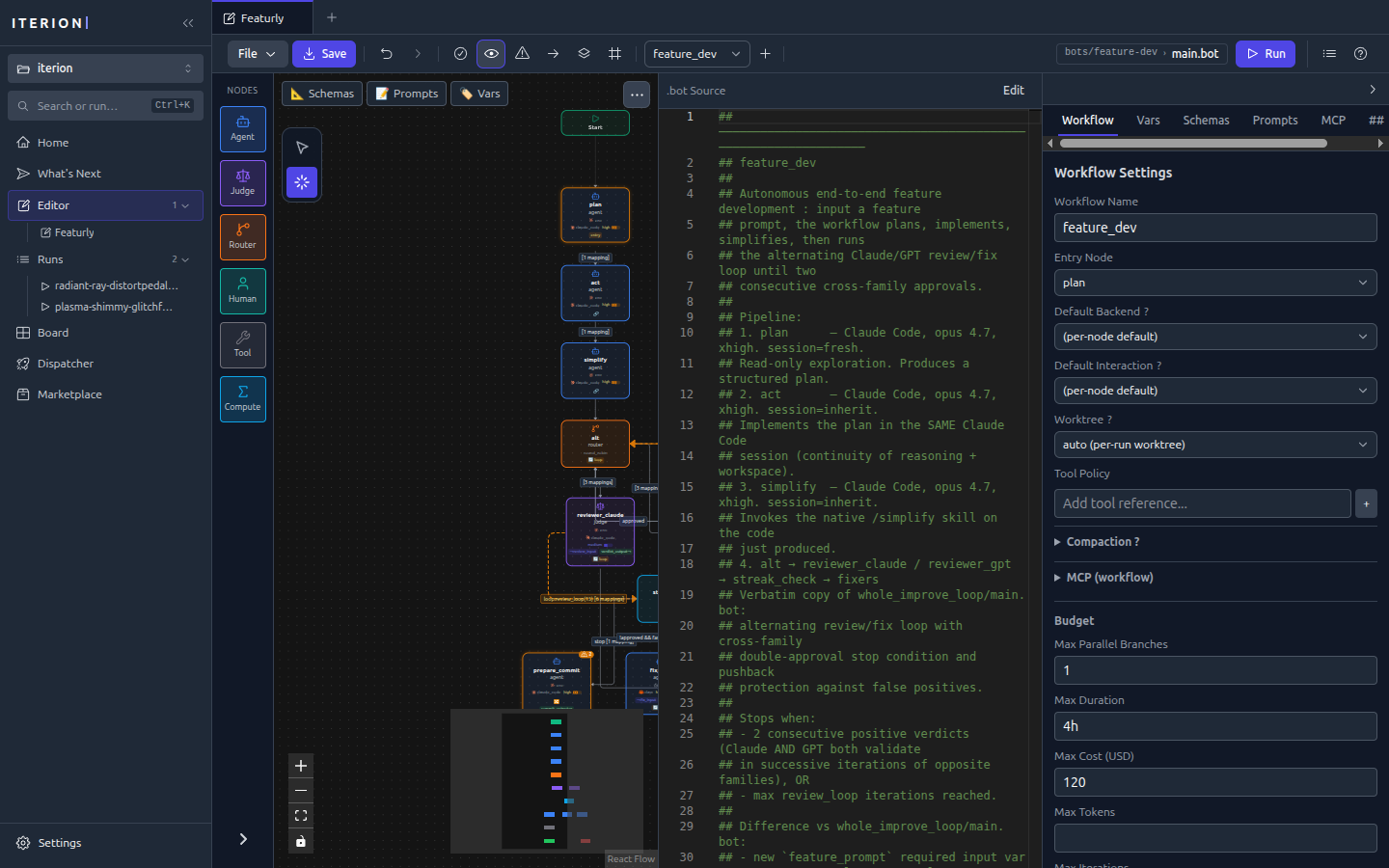

Source view — the raw .bot source mirrored beside the graph, edits in either stay in sync.

Studio source view — graph and .bot source side by side

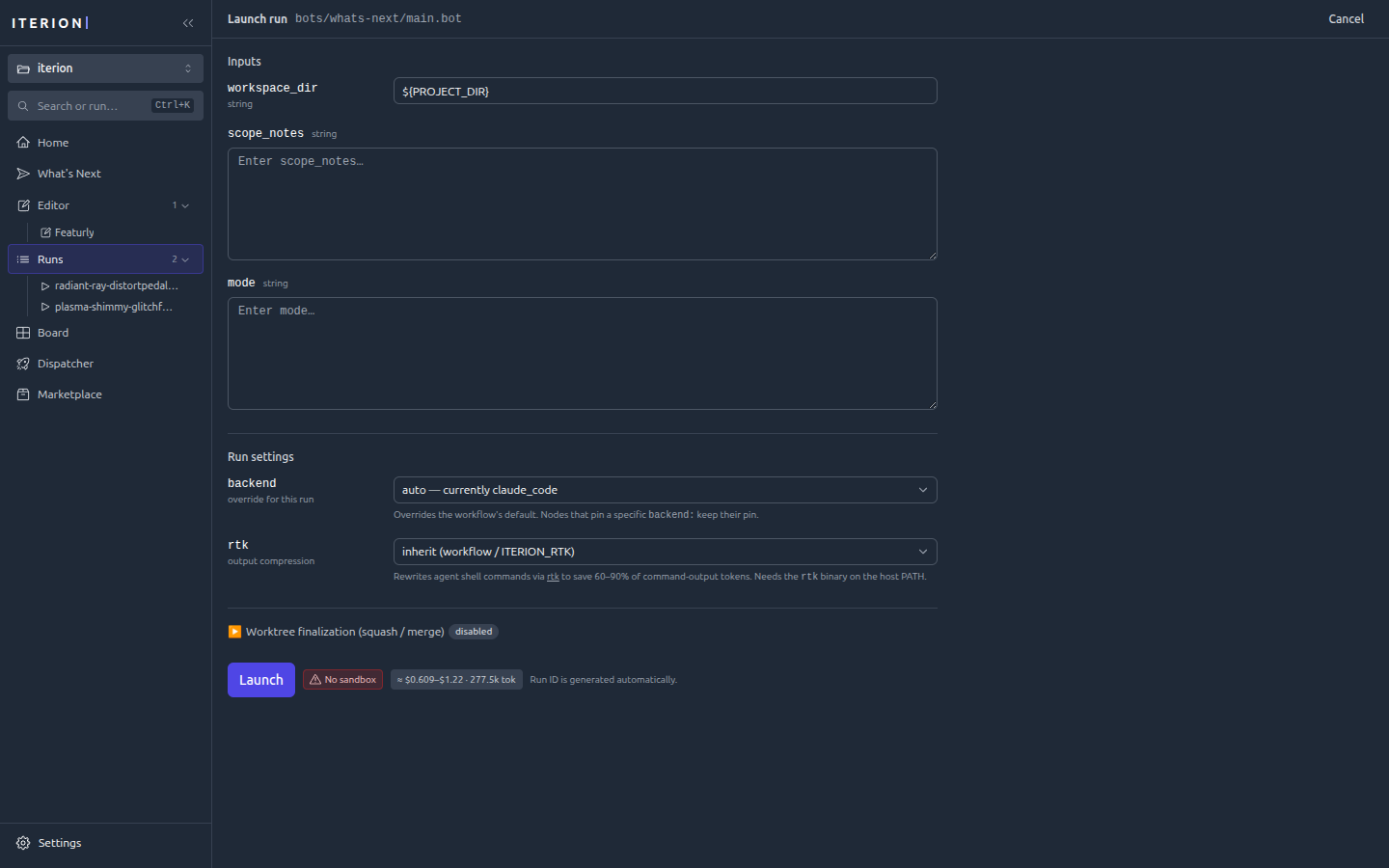

Launch modal — fills vars and attachments, picks a backend, and previews the estimated cost before the run starts.

Studio launch modal with vars form, backend selector, and cost preview

Running & observing

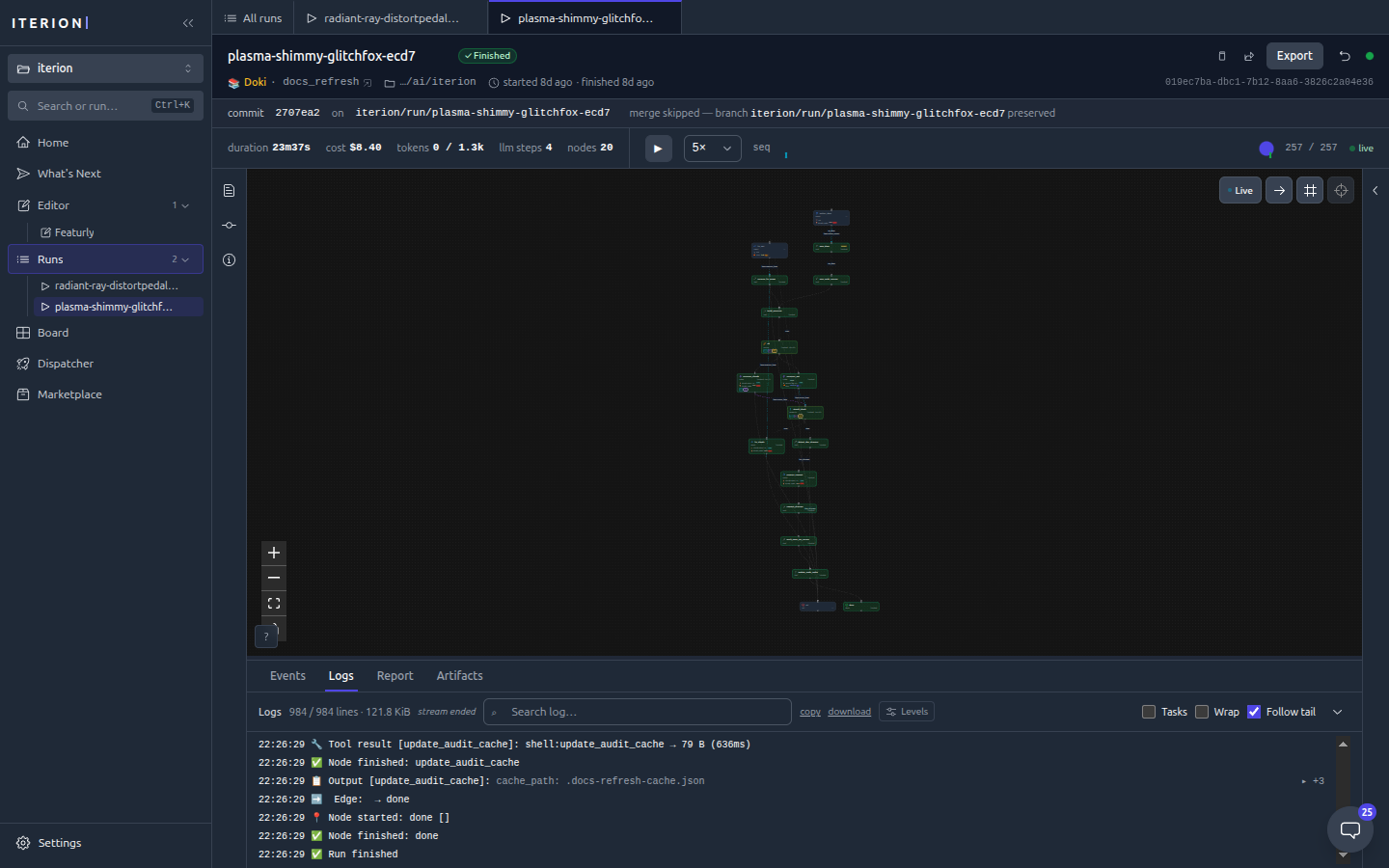

Run console — a live graph of the run, a streaming event log, and a header showing the commit/branch the run landed on.

Studio run console — live IR graph and streaming logs

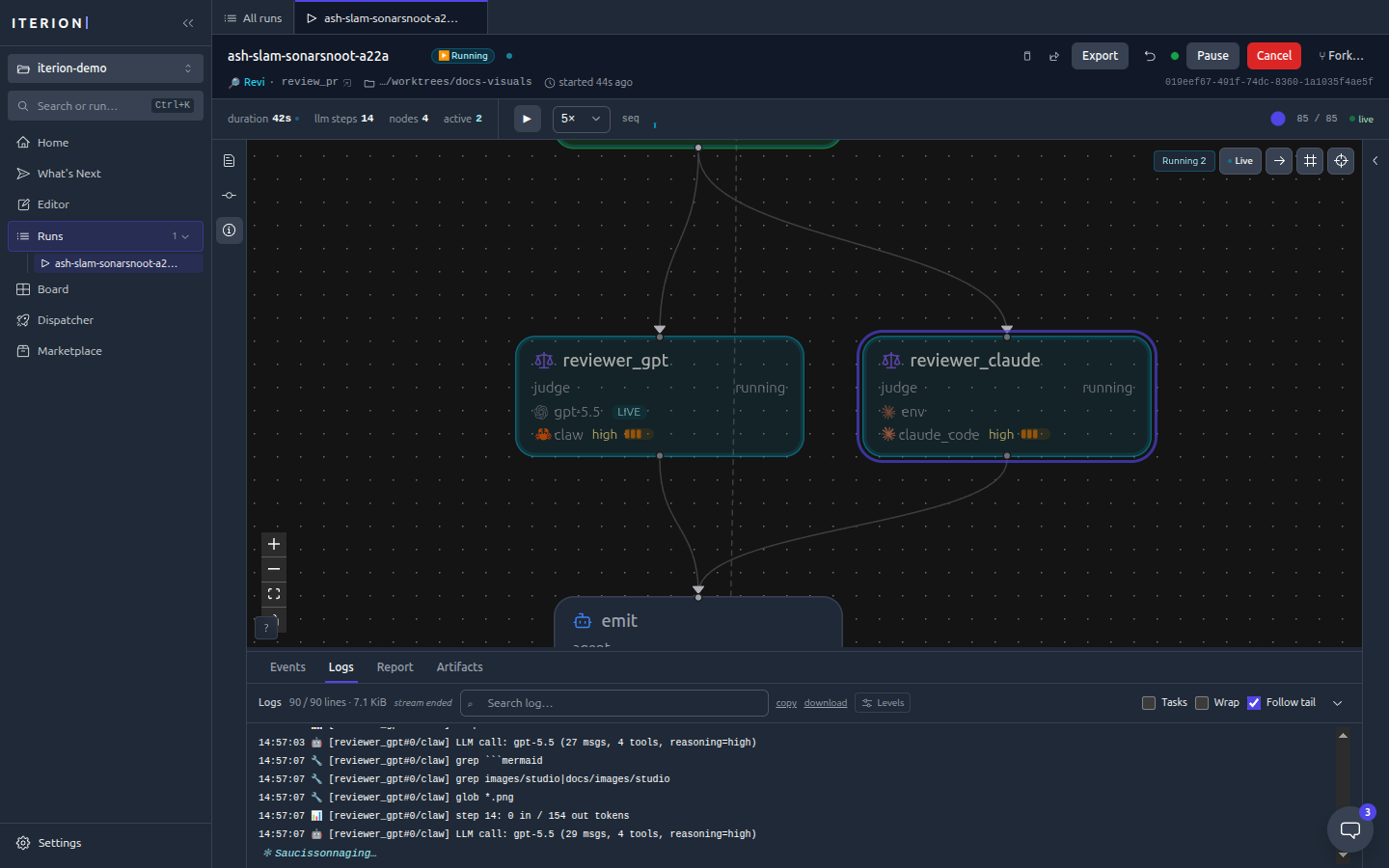

Run in flight — a running review with both cross-family judges executing in parallel (note the green Running badge and the live log tail).

Studio run console — a run in progress with parallel judge branches

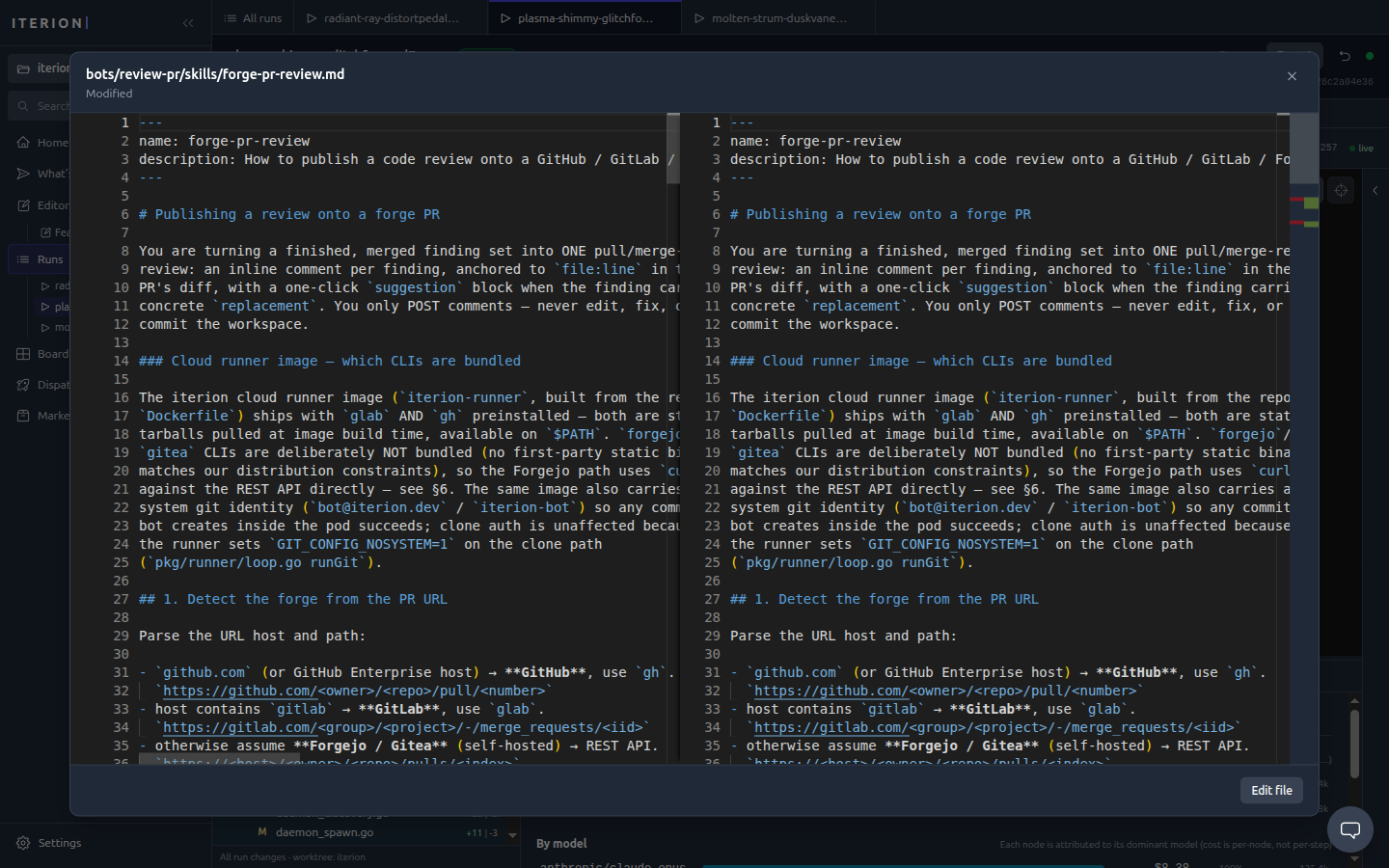

File diff — every file the run changed, opened in a side-by-side diff.

Studio run console — side-by-side file diff

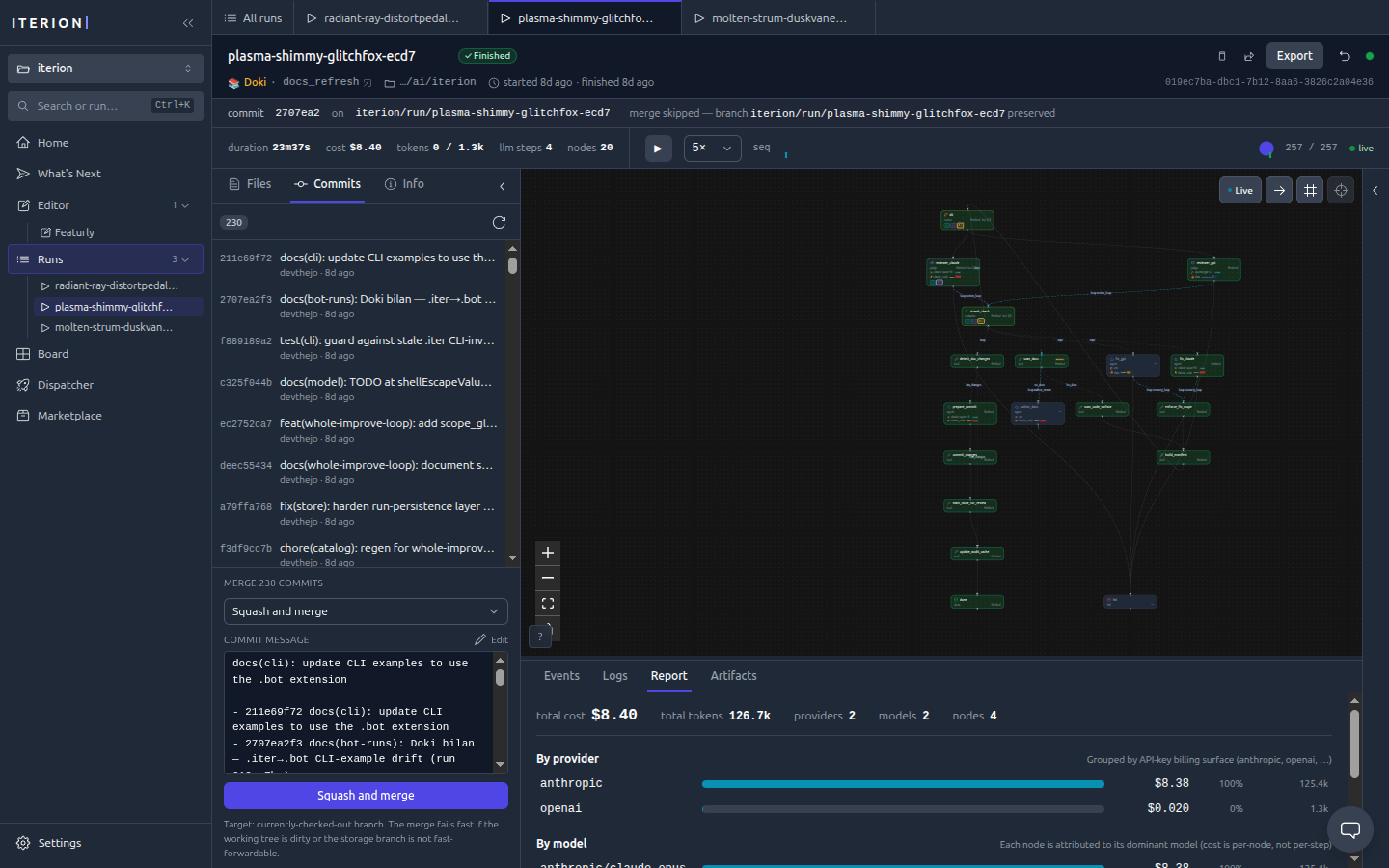

Commits & merge — the run's commits with a one-click squash-and-merge into your branch.

Studio run console — commit list with squash and merge

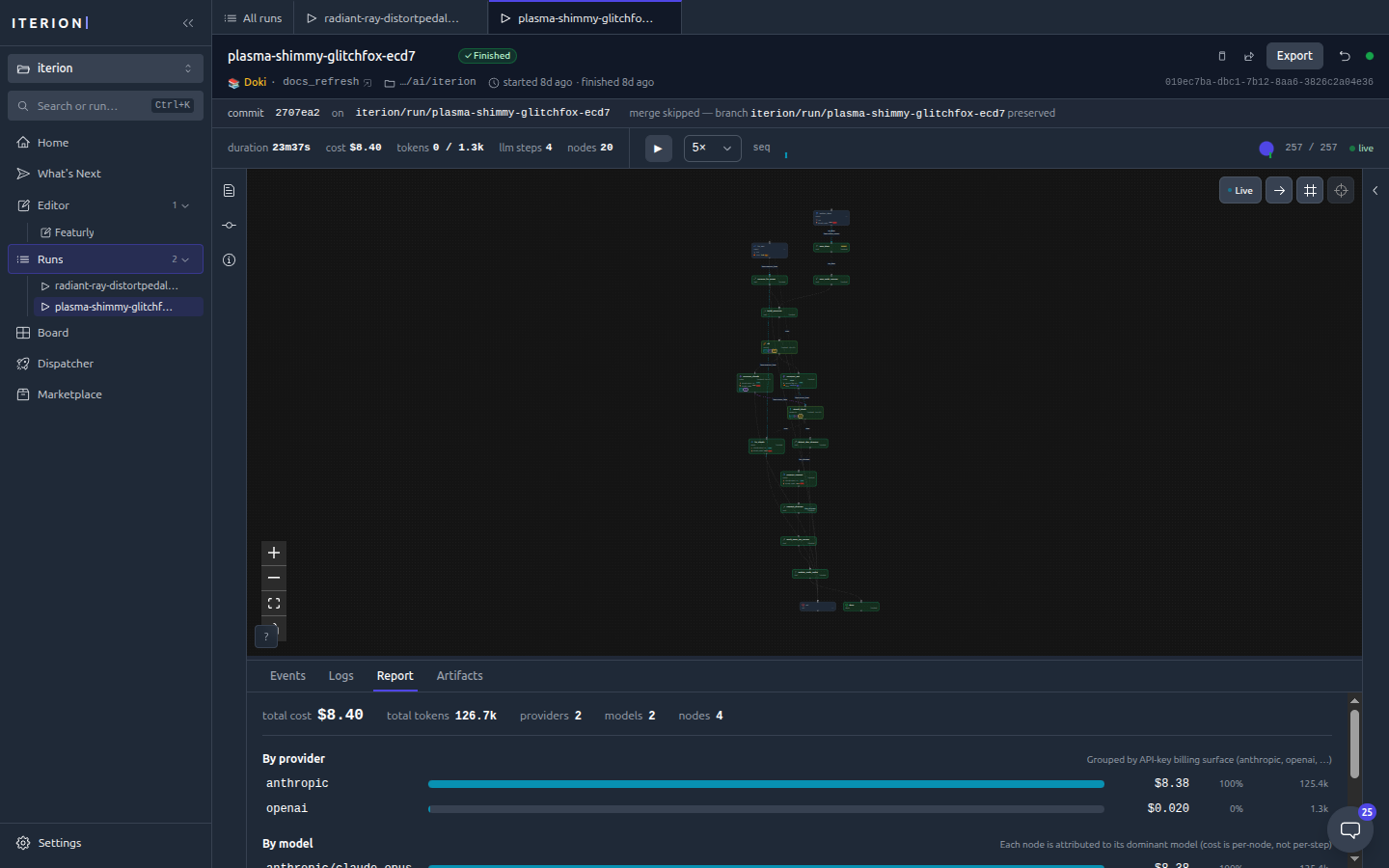

Cost report — per-provider and per-model cost attribution for a finished run.

Studio run report tab — cost attribution by provider and model

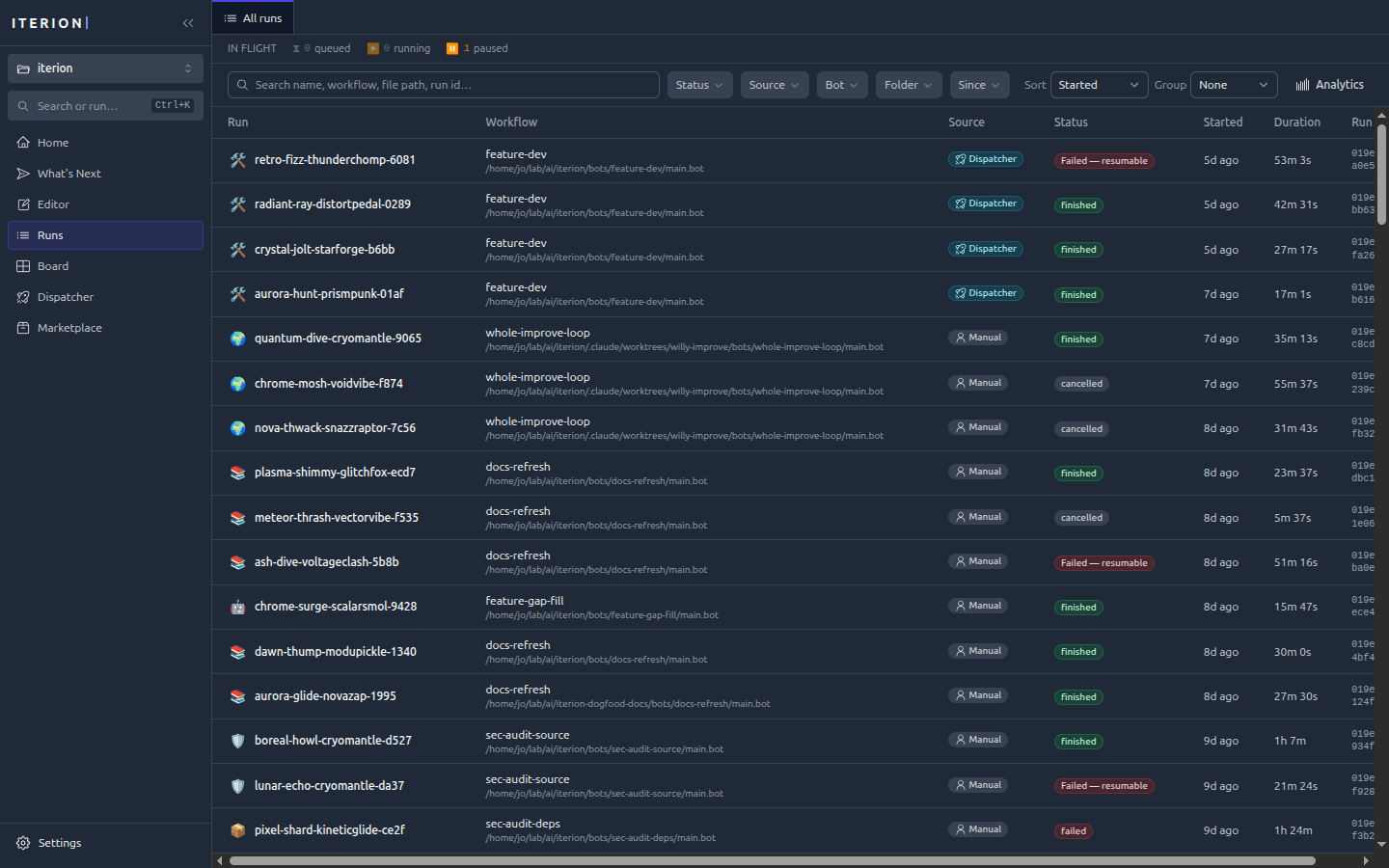

Runs list — every run with status, cost, and duration, filterable and sortable.

Studio runs list with status, cost, and duration columns

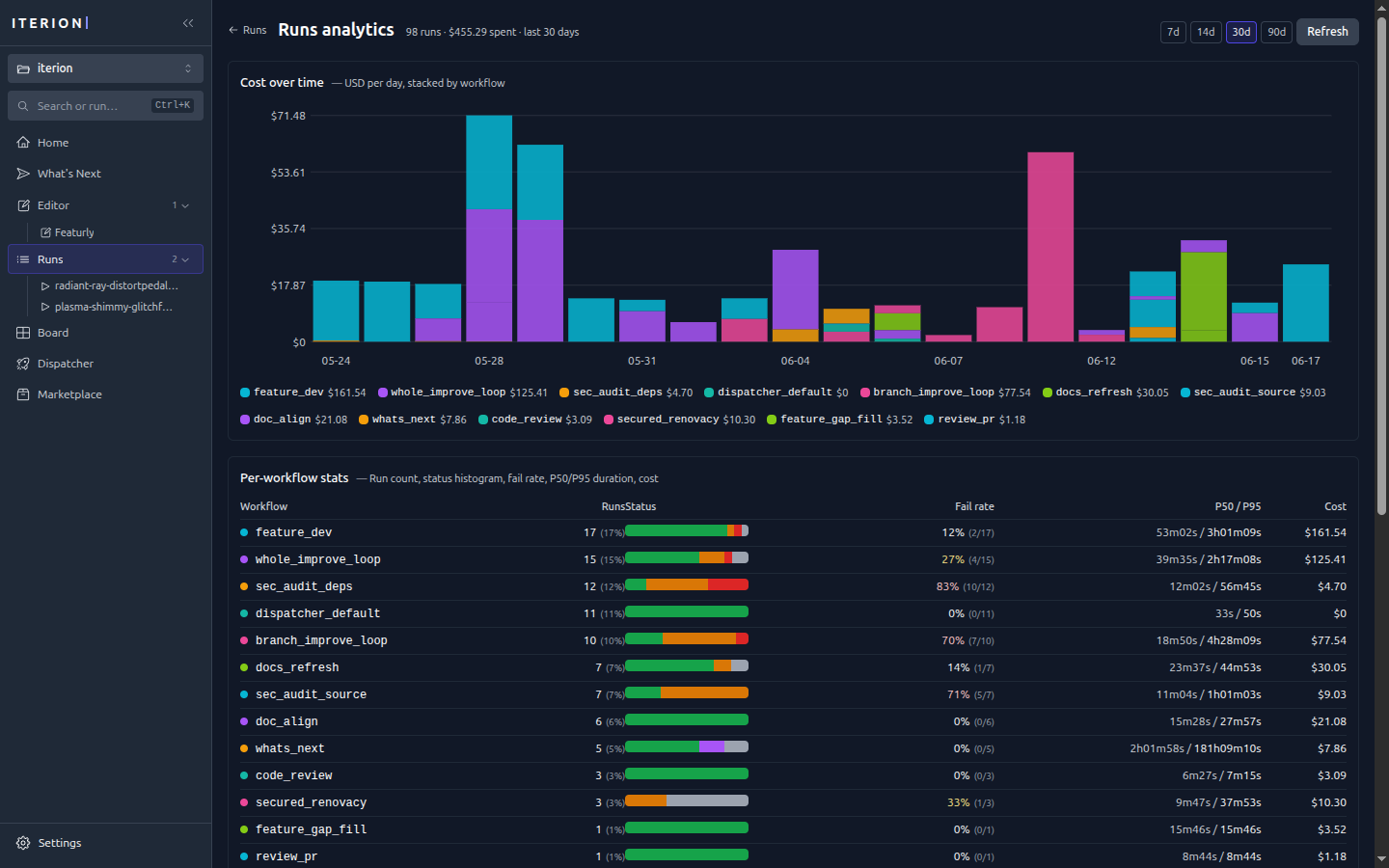

Run analytics (/insights) — cost over time stacked by workflow, plus per-workflow run counts, fail rates, and P50/P95 durations.

Studio run analytics — cost-over-time chart and per-workflow stats

Human in the loop

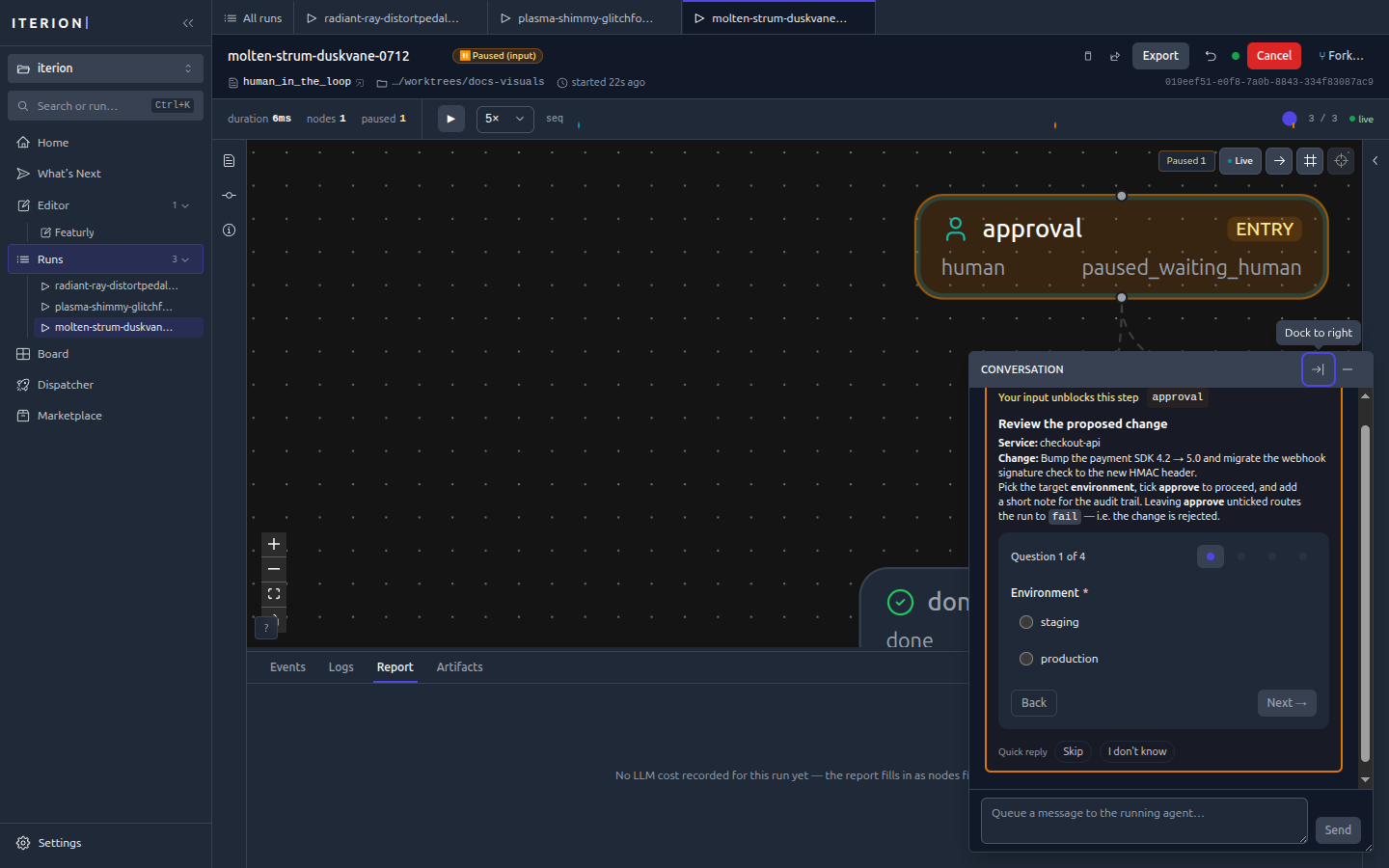

Interaction form — when a run reaches a human node it pauses and renders a form (here a deploy-approval gate). See human-in-the-loop.md for the field-type → widget mapping and the four interaction modes.

Studio — a human node paused with its interaction form

Orchestration

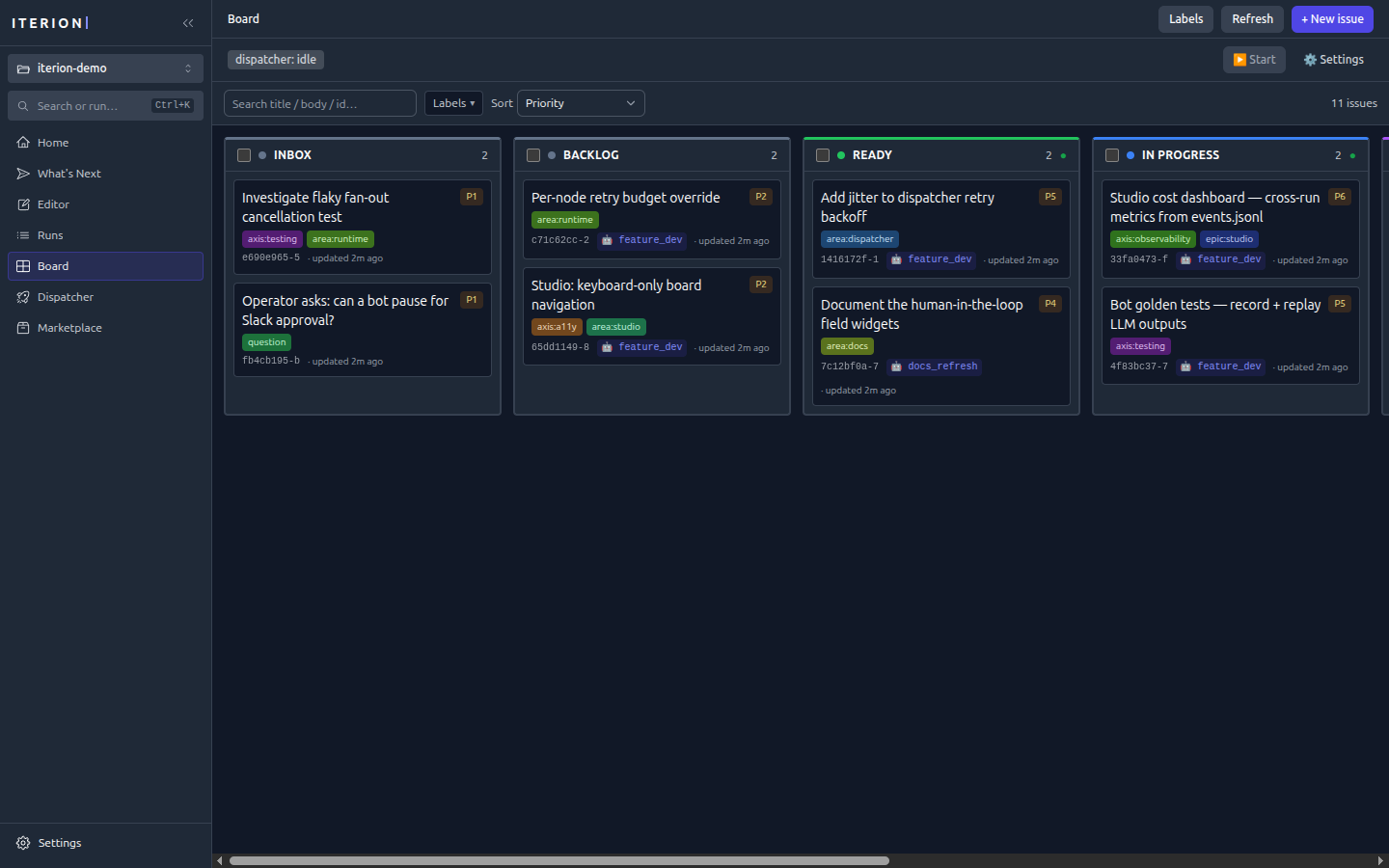

Kanban board (/board) — the native tracker with drag-and-drop, labels, priorities, and per-card bot assignees, flowing across columns from inbox to done.

Studio kanban board with work across inbox, backlog, ready, and in-progress columns
